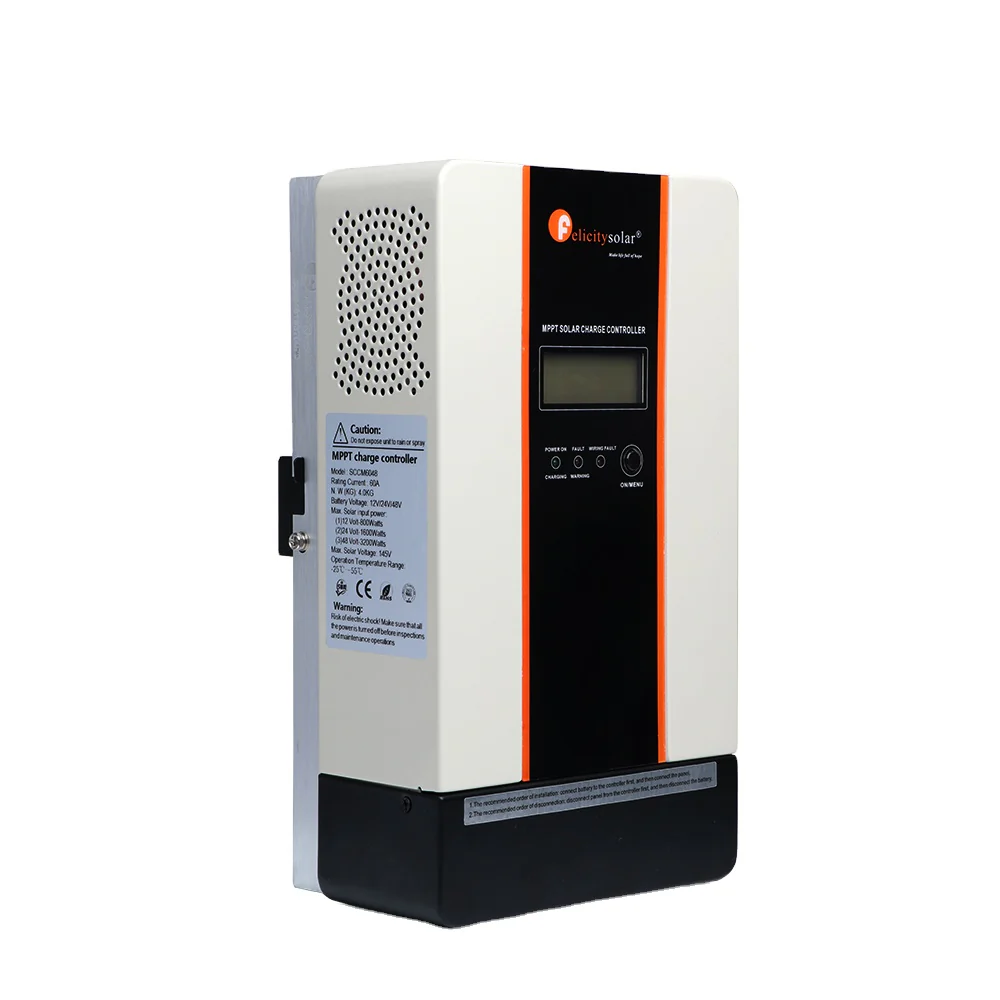

Model	FL-SCCM4524	FL-SCCM6048	FL-SCCM8048	FL-SCCM10048	FL-SCCM12048
Max PV Input Vol	145V			195V
System Vol	12V/24V/48/(Auto dection)
Max battery Charge Current	45A	60A	80A	100A	120A
PV Array MPPT Vol Range	15V-130VDC/ 30-130VDC/ 60-130V			15V-170V/ 30-170V/ 60-170V
Max PV Input Power(12V)	625W	825W	1100W	1375W	1650W
Max PV Input Power(24V)	1250W	1650W	2200W	2750W	3300W
Max PV Input Power(48V)	2500W	3300W	4400W	5500W	6600W
Charge information
Charging Curve	See image below this sheet
Charge Algorithm	3-Step
Charging Stages	Bulk,Absorpotion,FloatBulk,Absorption,Float
Temperature Compensation Coefficient	-5mV/℃/Cell/(25℃ref)
Temperature Compensation Range	0℃ to 50℃
Temperature Compensation Set Points	Absoption, Float Absoption, Float
Charging Set Points	Absoption Stage, Float Stage
Flooded Battery	14.6V/29.2V/58.4V
ARG/Gel Battery(Default)	14.1V/28.2V/56.4V
Overcharge voltage	15V/30V/60V
Overcharge restart voltage	14.5V/29V/58V
Battery discharge voltage	8.5V/17V/34V
Battery overdischarge voltage	9V/18V/36V
Mechanical & Environment
Size(HWD)	283160105mm		283160105	333215120mm
Weight	4.0KG		5.1KG	7.0KG
Ambient Temperature Range	0℃ to 50℃
Storage Temperature Range	-40℃ to 75℃
Humidity	0%-90%RH(No condensing)
Enclosure	IP31(indoor&vented)
